Code: SE-AHSet
Air Handling Connection Set

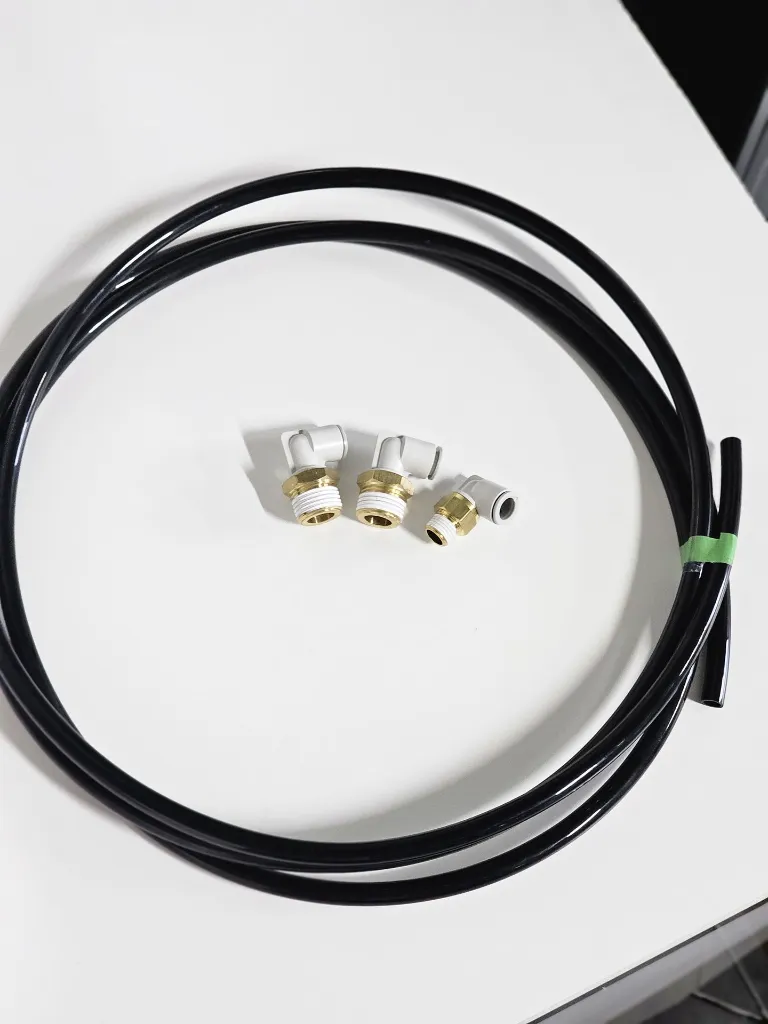

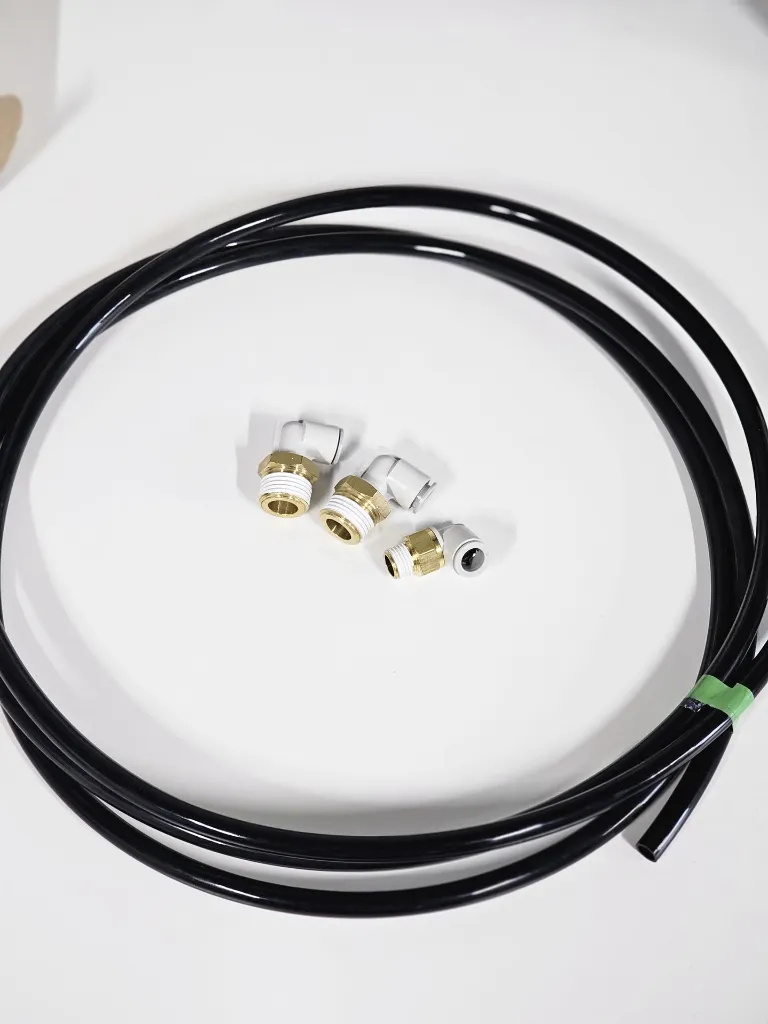

The Connection set contains connectors and tubing designed to facilitate connection between the air handling units and the SETIS™ Control Unit.
Specifications:
1 x ø 10 mm Elbow Male Push-in connector
Position: Compressor air OUT
Applicable Tube O.D.: ø 10 mm
Port Size: 1/4
2 x ø 10 mm Elbow Male Push-in connector
Position: Air Dryer IN and OUT
Applicable Tube O.D.: ø 10 mm
Port Size: ½
3m PU Tube
Position:
Between compressor OUT and dryer IN
Between dryer OUT and SETIS™ filters IN
Between SETIS™ filters OUT and Control Unit IN
Size: I.D. 8/O.D. 10 mm
Material: PU-Polyurethane
Price per/set excl. VAT and EXW
In the document below you can find more info about how to connect:
SETIS Connection diagram
